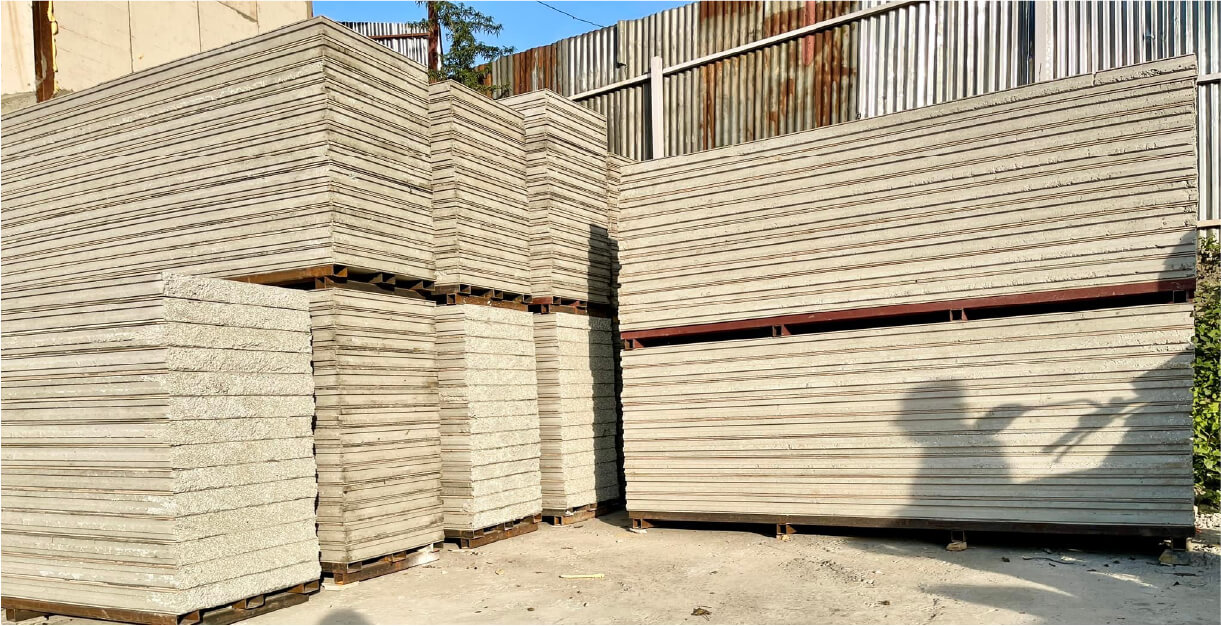

Product Name	EPS Cement Sandwich Panels
Double Sides Surface:	Calcium silicate board as skin layers
Sandwich Core:	EPS cement mixture as sandwich core
Panel Joining Method:	Tongue & Groove
Specification: (L*W*T)	2270mm*610mm*60/75/90/100/120/150mm; (90 inch*25 inch*2.5/3.0/3.5/4.0/4.7/6.0 inch)
Packaging	Packed with EPE film, wedge protected on pallets.
MOQ	One 20′ GP
Payment Term	T/T, L/C, West Union, etc
	Fob Wuhan, Shanghai
Lead Time	7-15 days after payment confirmed



II. EPS cement sandwich panels features

Lightweight Density:650kg/m3; lower structure load;	Fast Construction 40 m2/day/labor; Easy to cut, carry and install;	Cost Saving Total cost 30% off; Material saving; Decoration saving;
Fireproof Reaction to fire: 4 hours	Sound Insulation STC rated 42 dB	Thermal Insulation Thermal conductivity: 0.17W/(m2.k)
Moisture Resistance Lower water absorption;	Anti-seismic Flexible and durable;	Space Saving Average room saving 5%;
Eco Friendly Asbestos free, no toxicity;	No Plaster Smooth surface for finish;	Heavy Anchorage Single point load 150kg

III. EPS cement sandwich panels application

Partition Wall / Inner Wall / Interior Wall
Outside Wall / Outer Wall / Exterior Wall

IV. EPS cement sandwich panels installation

Step 1
Clean the area.
Step 2
Define the wall line.
Step 3
Clean the surface of the structure and each sides of the wall panel before apply adhesive.
Step 4
Mix cement adhesive mortar and apply to the structure and both sides of wall panel.
Step 5
Put the wedge and install the wall panel, check the wall panels vertically and horizontally.
Step 6
Drill a 3cm hole at the bottom of the structure, nail the wall panel with structure by L shape rebar.
Step 7
Measure the dimension of remaining space and cut the wall panel accordingly.
Step 8
Place the small wall panel and fix with structures like Step VI.
Step 9
Draw and groove the wall to finish the electrical wire, water pipes and sanitary works, fill the grooves with cement mortar.
Step 10
Decorate the wall with skim coat, painting, wallpaper or tiles.
